Product Information
The manual plate shears are constructed by welding steel plates together, forming a sturdy body. These shears are designed to effortlessly cut through various materials such as metal sheets, steel mesh, and wires, with a cutting range that spans from 0.2mm to 6mm. Equipped with a substantial punching shear force, these shears provide synchronized feeding and an even distribution of force during operation, allowing for both crosscutting and longitudinal cutting. The frame section of the shearing machine is meticulously crafted using top-notch low carbon steel for enhanced durability, while the tool component is fabricated from high-quality tool steel, ensuring excellent cutting performance.
peculiarity
The latest technology is employed in producing manual shears that boast of a sleek and elegant design. This versatile tool is easy to operate and can be employed for multiple purposes. It is strong and sturdy enough to cut through steel bars and is widely used in industries like sheet metal, construction, hardware, and maintenance. As a hand cutting tool, it is highly sought-after and ideal for many applications.
Item No. | HR200101 | HR200102 | HR200103 | HR200104 | HR200105 | HR200106 | |

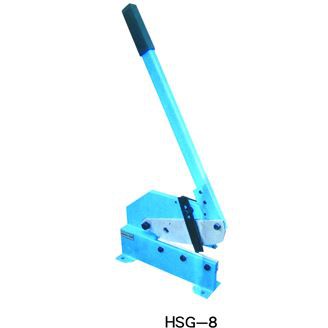

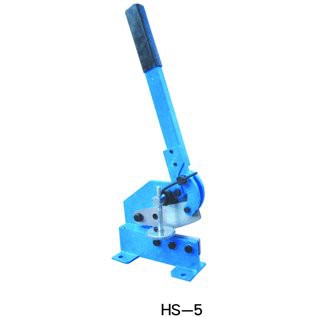

Model | HS-5 | HS-6 | HS-8 | HS-10 | HS-12 | HSG-8 | |
Blade length | 5" | 6" | 8" | 10" | 12" | 8" | |
Capacity(mm) (mild steel) | Sheet steel | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 |
Flat steel | 70×6 | 70×6 | 70×6 | 70×6 | 70×6 | 70×6 | |
Round steel | 11 | 11 | 13 | 13 | 13 | 13 | |
Packing size（cm） | 33×16×33 | 33×16×33 | 50×16×45 | 74×16×44 | 74×16×44 | 50×16×45 | |
N.W./G.W（kg） | 10/12 | 11/13 | 17/19 | 21/23 | 26/28 | 17/19 | |
